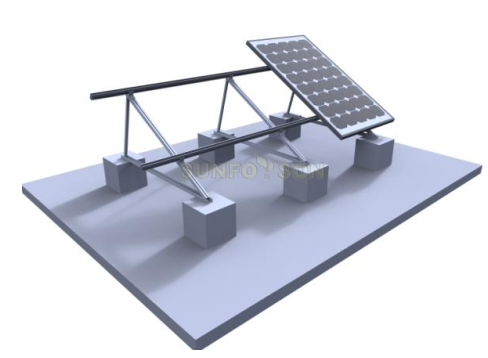

SunRack SFS-FR-03 triangular mounting system with a foldable design saves a lot on installation and transportation. It can be installed directly on rooftop, ground or pre-made cement blocks as your option. All panels are suitable and easy&fast installation will gain a lot for your project.

Roof Bracket Specification

Installation Site: open ground and roof

Panels: Solar panel for any size

Structural materials: aluminum, stainless steel

Survival wind speed: up to 60m / s

Design snow load: up to 1.4KN / m2

Inclination: Customizable

Component direction: Vertical or Landscape

Design Standards: CE&AS / NZS 1170

Life: Design Life for 25 years, quality assurance for 10 years

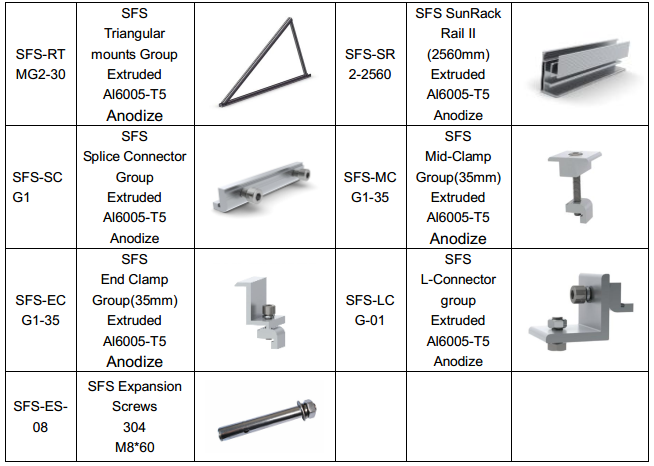

Overview of system components

Products Strengths of Sunforson technology

1.Easy Installation: The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.

2.Great Flexibility: With the Sunforson Solar Roof, framed photovoltaic modules can be easily mounted on pitched roofs. The Solar Roof system has mounting accessories designed for use on almost every roof cladding available with unique rail.

3.High Accuracy: Without the need of onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.

4.Excellent Adaptability: The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the roof is. Engineered to High Standard Sunforson Solar Roof is made to the highest standard, safe and strong design to Comply with AS/NZS 1170.

5.Maximum Lifespan: All components are made of good quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

6.Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used.
