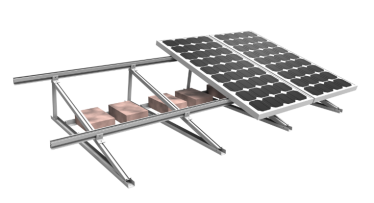

SunRack Flat Roof Tripod Ballast mounting System Technology adopts the triangle structure, with a simple and dignified appearance, exquisite and stable structure, on-site installation without welding. And it is with high reliability to meet the structural carrying capacity features and combined with practical, optimize the use of materials.
Sun Rack SFS-FR-03C ballast mounting structures are best adopted with tilt angle 5-30 degree,panel in portrait.It is quite easy to mount for tripods,all components are pre-installed in factory,only one piece M8*65 bolt is required to be fixed to finish the tripods installation.
No cutting,no welding,even no special tools are in demand for installation.This simple design can help save a lot installation time and labor cost.Foldable design really help cut down the cost for transportation.
|
Ballast Roof Bracket Specification Installation Site: open ground and flat roof Panels: Solar panel for any size Structural materials: aluminum, stainless steel Survival wind speed: up to 60m / s Design snow pressure: up to 1.4KN / m2 Inclination: customizable Component direction: vertical Design Standards: CE&AS / NZS 1170 Life: Design Life for 25 years, quality |
