Sunforson specializes in SunRack solar ground pole mount system manufacturing and designing to meet the needs of various pole mount installation. SunRack single post mount enables you to install 1~16 solar panels in different panel layout. With cap design, you could adjust it to any direction according to your demand.

Specification

Installation Site: Open ground

Panel Dimension: Any Size

Panel Type: Framed or frameless panel

Structural materials: aluminum, stainless steel

Survival wind speed: Up to 60m / s

Design snow pressure: Up to 1.4KN / m2

Component direction: Vertical or Landscape

Tilt angle: Customized

Design Standards: CE&AS / NZS 1170

Life: 10 years on aluminum material,5years on Q235

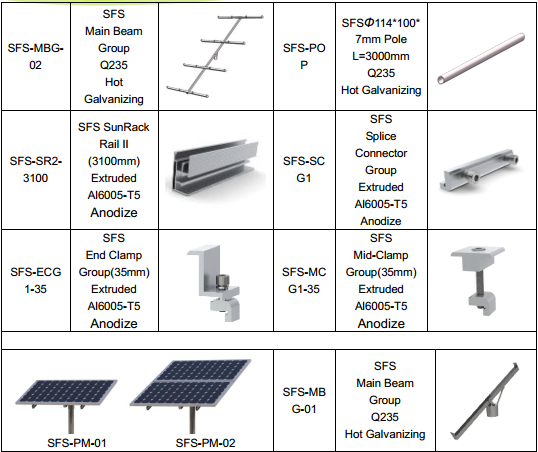

Overview of system components

Features

1. Post cap adjustable according to the geographical location demand

2. 1~16 panels can be supported by the pole in a strong and secure way

3. Best used in solar pump,home solar system mounting and other open ground solar project
