Adjustable Angle Pv Bracket Specification
Installation Site: open ground and roof
Panels: Solar panel for any size
Structural materials: aluminum, stainless steel
Survival wind speed: up to 35m / s
Component direction: vertical
Tilt Angle: Customized
Design Standards: CE&AS / NZS 1170
Life: Design Life for 25 years, quality assurance for 10 years
Products Strengths of Sunforson technology
1.unique L-shaped design The main beam with a unique L-shaped design, the track has a better stability, not easy swing。
2.Quick installation, saving schedule: With the professional design, Sunforson PV system composed by a small number of assembly (assembly of parts in advance), non-site drilling or welding, can be quickly assembled on site, unique pieces of card guide and installation design, improve the installation efficiency, save schedule.
3.Professional design, lower costs: Product were designed by experienced designers, to meet the AS / NZS 1170 standards , with mature process, stable structural and systematic design to save cost for the customers.
4. High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
Overview of system components

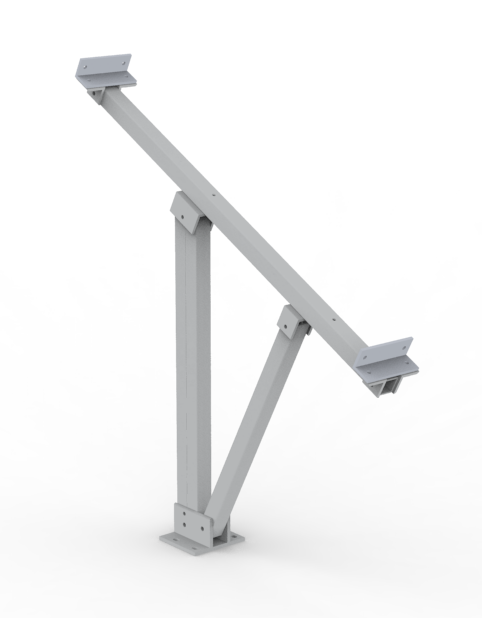

| SFS-SMG-01
|
SFS Support mounts group Extruded Al6005-T5 Anodize |
 |

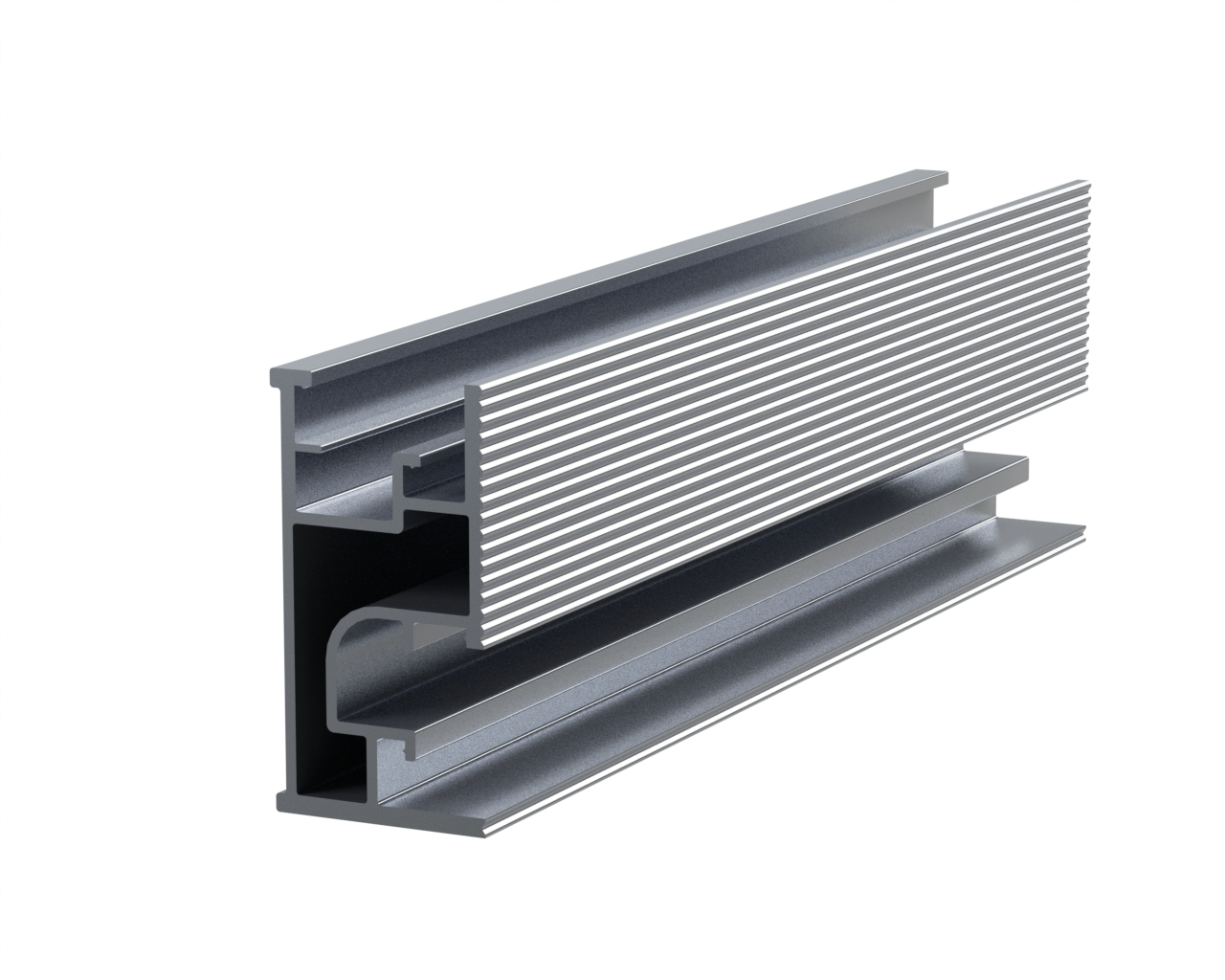

SFS-SR7- |
SFS SunRack Rail 7 Extruded Al6005-T5 Anodize |
 |

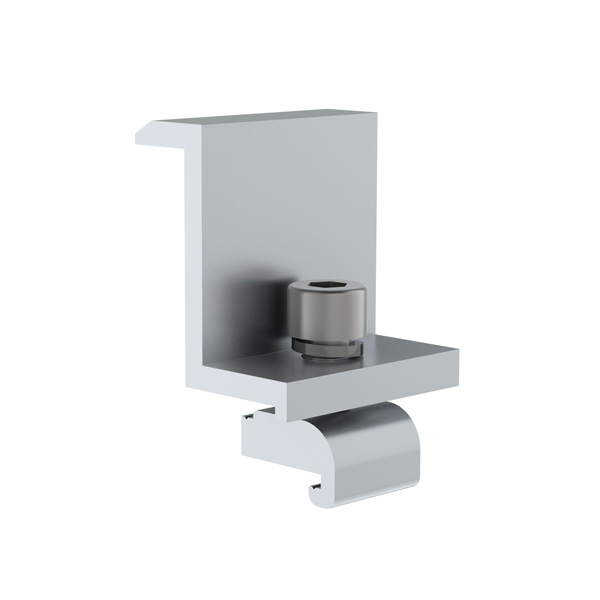

| SFS-ECG2 |
SFS End Clamp Group Extruded Al6005-T5 Anodize |
 |
SFS-MCG2 |
SFS Mid-Clamp Group Extruded Al6005-T5 Anodize |
 |
| SFS-LFG1-03 |
SFS L-Feet group Extruded Al6005-T5 Anodize |
 |
SFS-ES- 10 |
SFS Expansion Screws 304 M10*100 |
 |
